50,000 sq ft of production power
Four studio stages, broadcast control rooms, virtual production pipeline, and full crew — all under one roof in Inglewood, CA.
Explore
Take a Virtual Tour
Walk through every corner of our facility. See the stages, control rooms, and production spaces that make WePlay Studios a world-class venue.
Full Venue Walkthrough
Explore every stage, control room, and production zone
Our Mission in Inglewood
Why we chose Inglewood and what drives us
Floor Plans

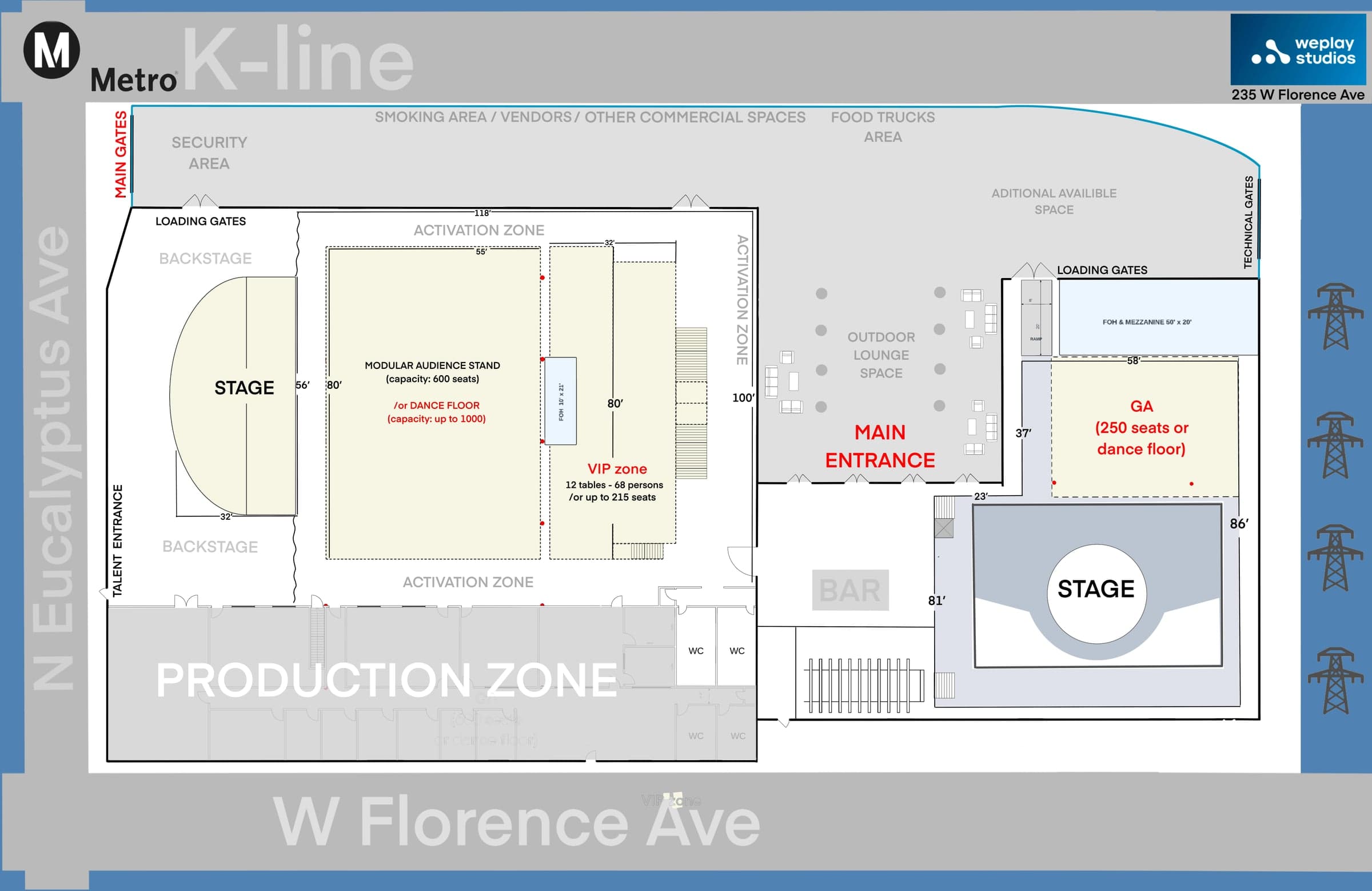

Venue Layout
Two-level facility with dedicated production zones, green rooms, and support spaces.
1st Floor — Main Event Space
Stage A, Stage B, GA Area, Outdoor Zones, VIP
Main Production Hall
Stage A + modular audience
GA / Stage B Area
250-seat arena with bar
Outdoor Lounge
Red carpet, activations, food trucks
VIP Zone
12 tables, 48 panels, up to 125 seats
Activation Zones
Sponsor booths & brand experiences
Production Zone
Crew staging & equipment
Studio 1 (Stage D)
Sports/newscast studio
Studio 2 (Stage C)
Podcast/interview room
Control Room
Broadcast switching & monitoring
Production Offices
Three production rooms
Lounge / Green Room
Talent & guest lounge
Make Up Rooms
Four dedicated rooms
Meeting Room
Pre-production planning
Our Stages
Four stages, infinite possibilities
Each stage is independently operated with its own lighting, audio, and camera infrastructure — all connected to a centralized broadcast control room.

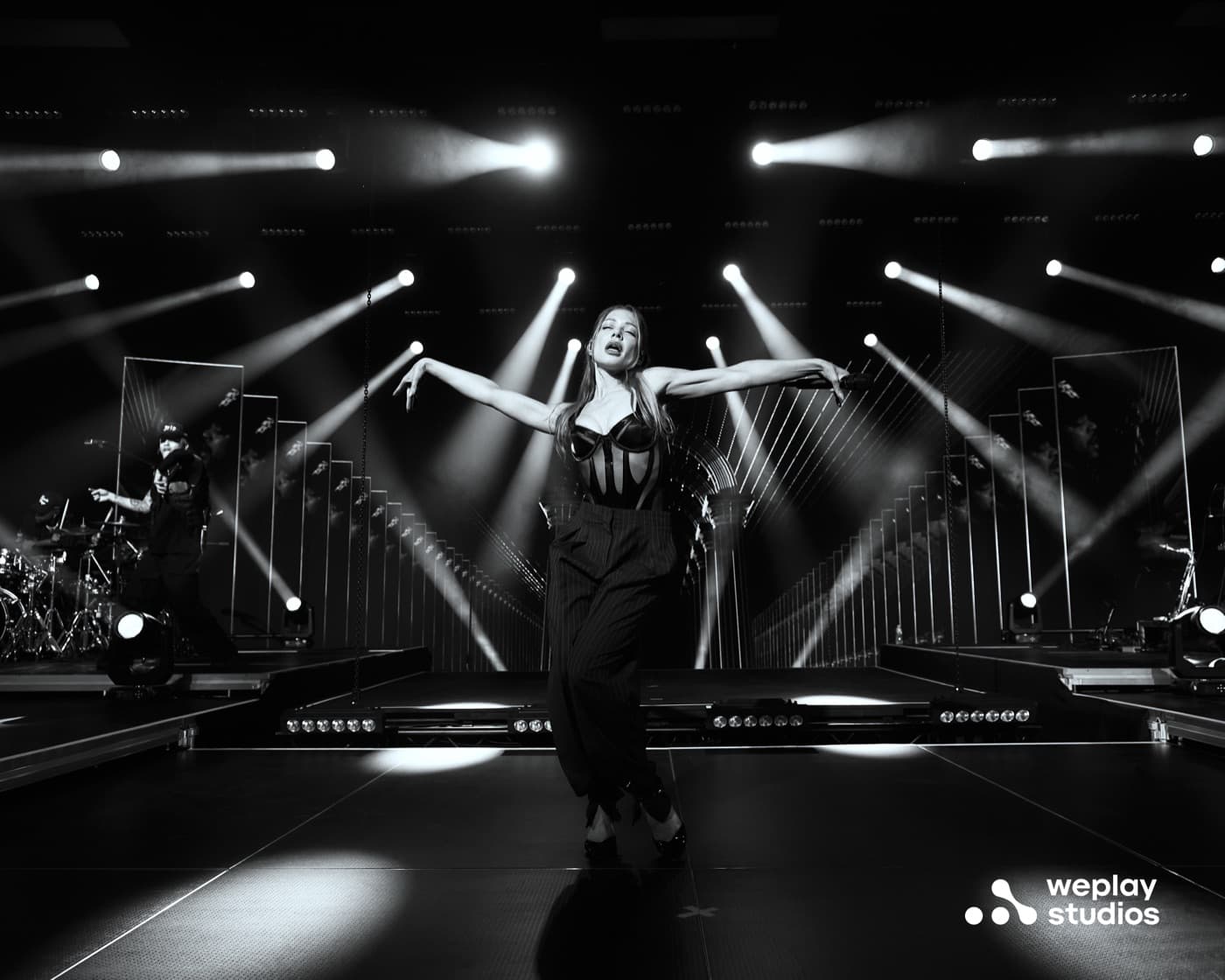

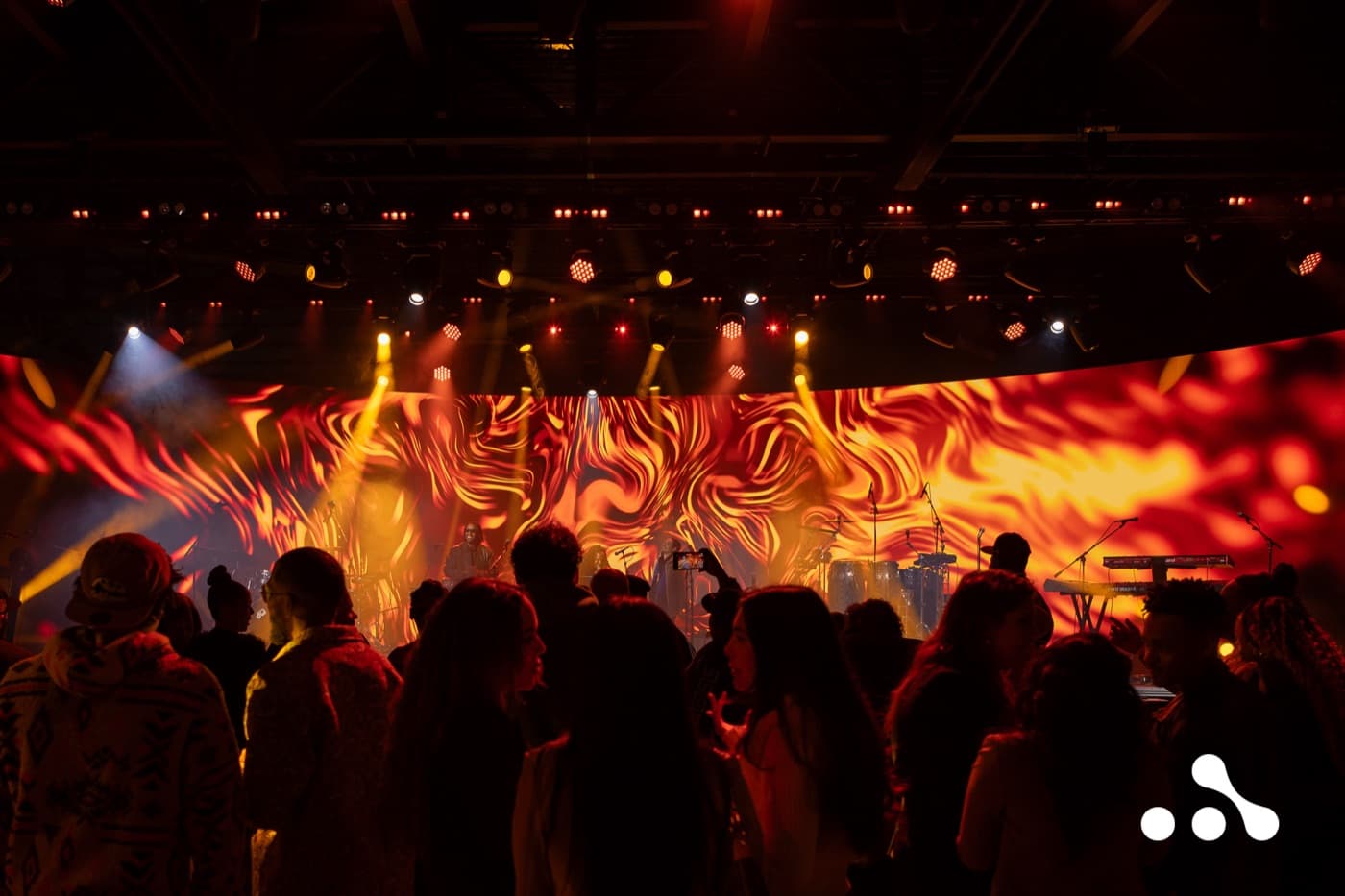

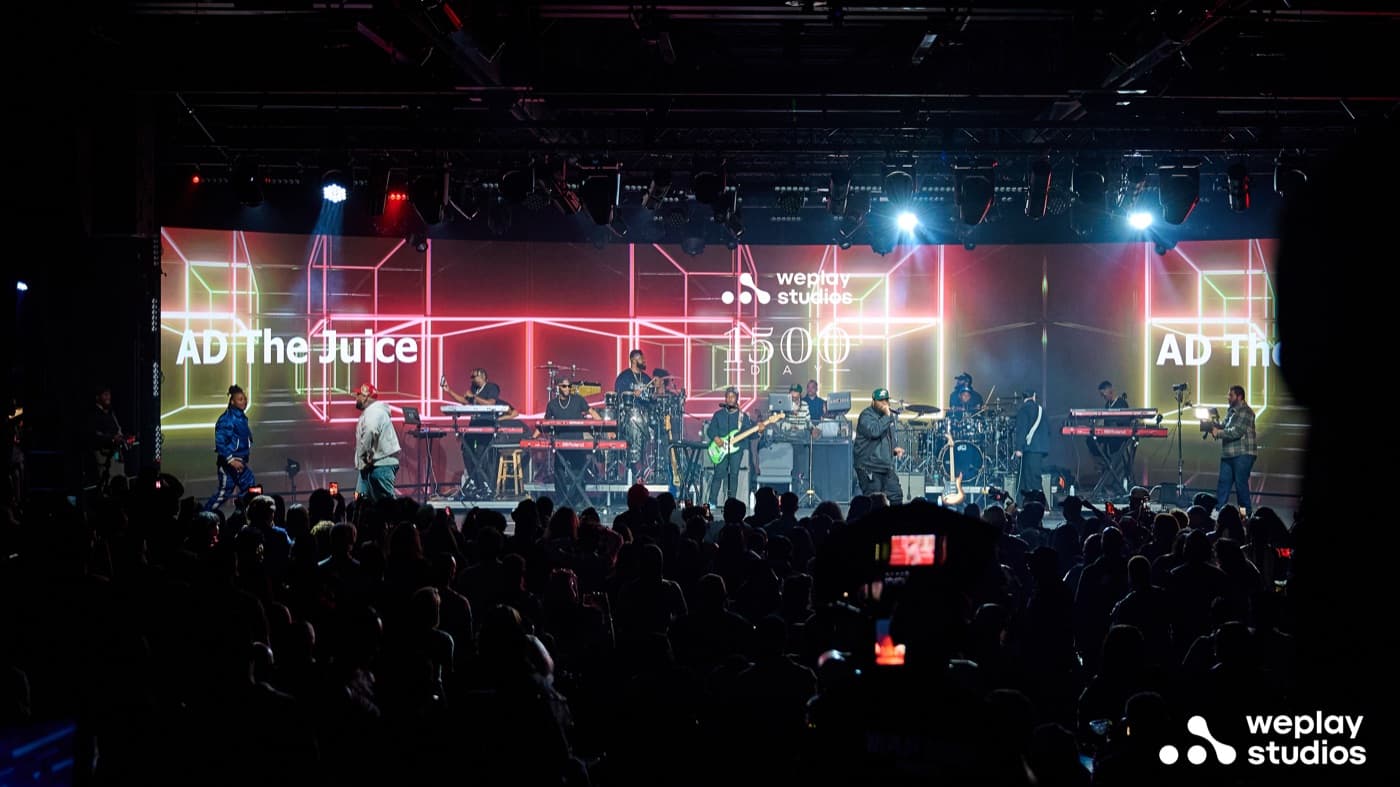

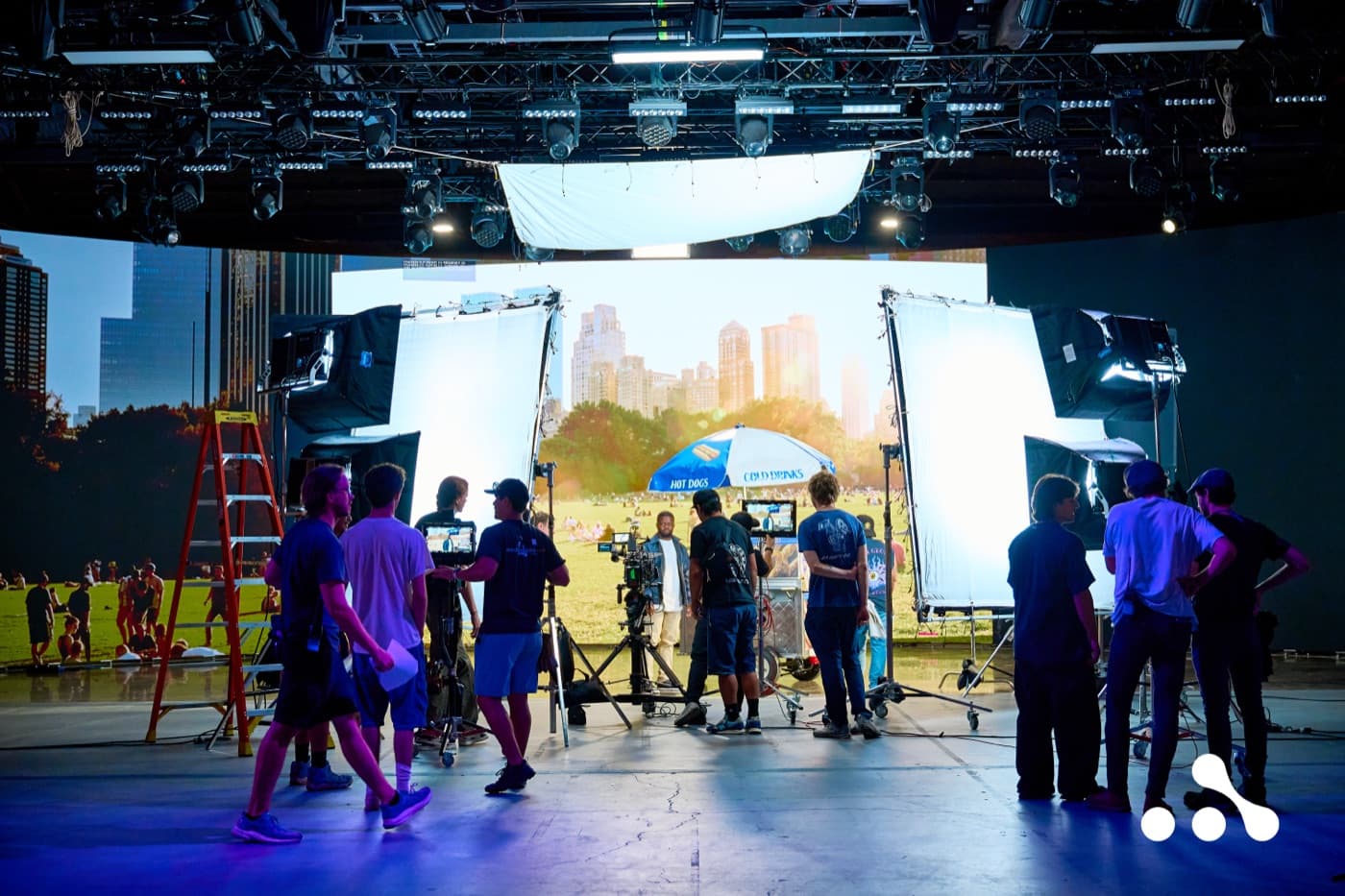

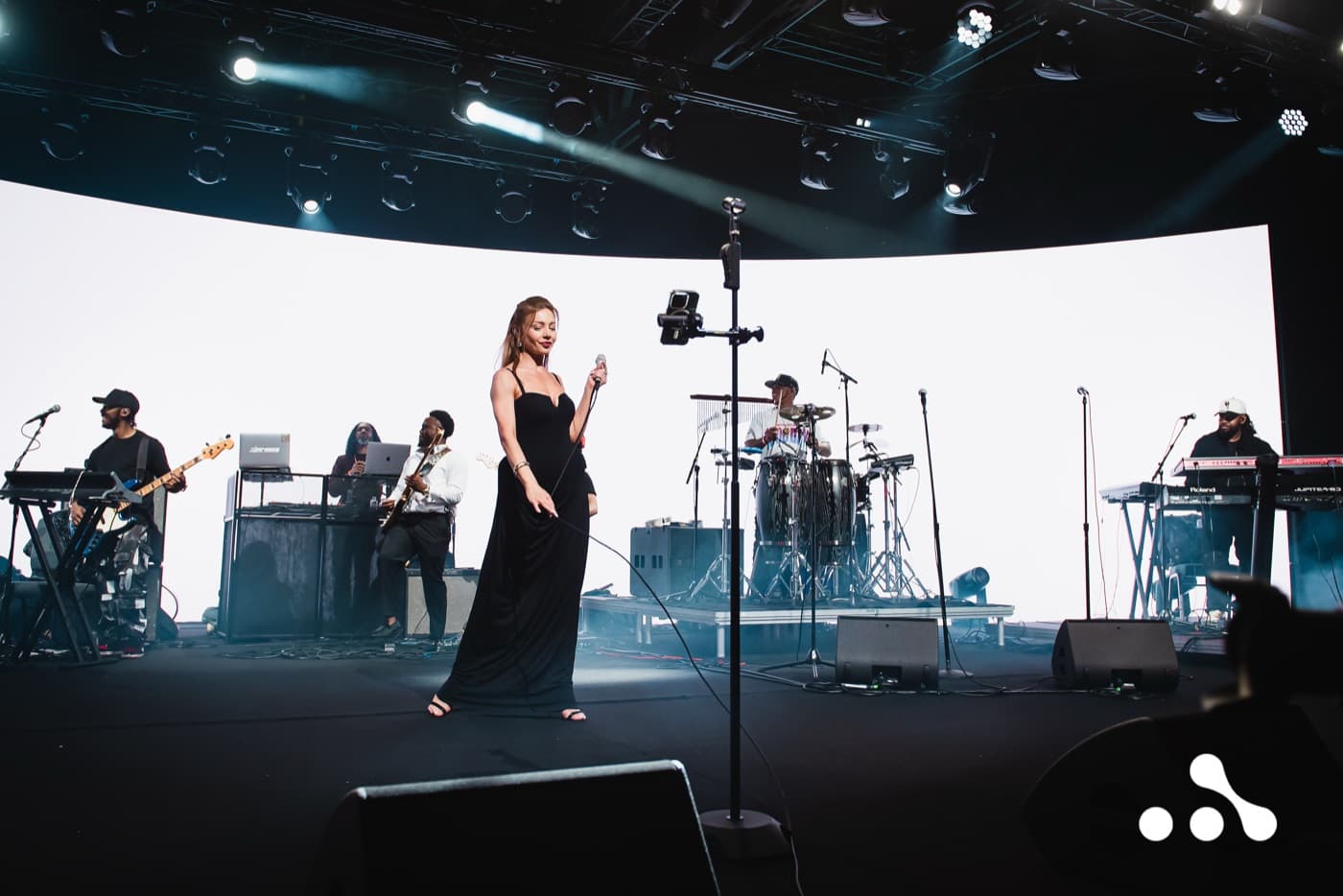

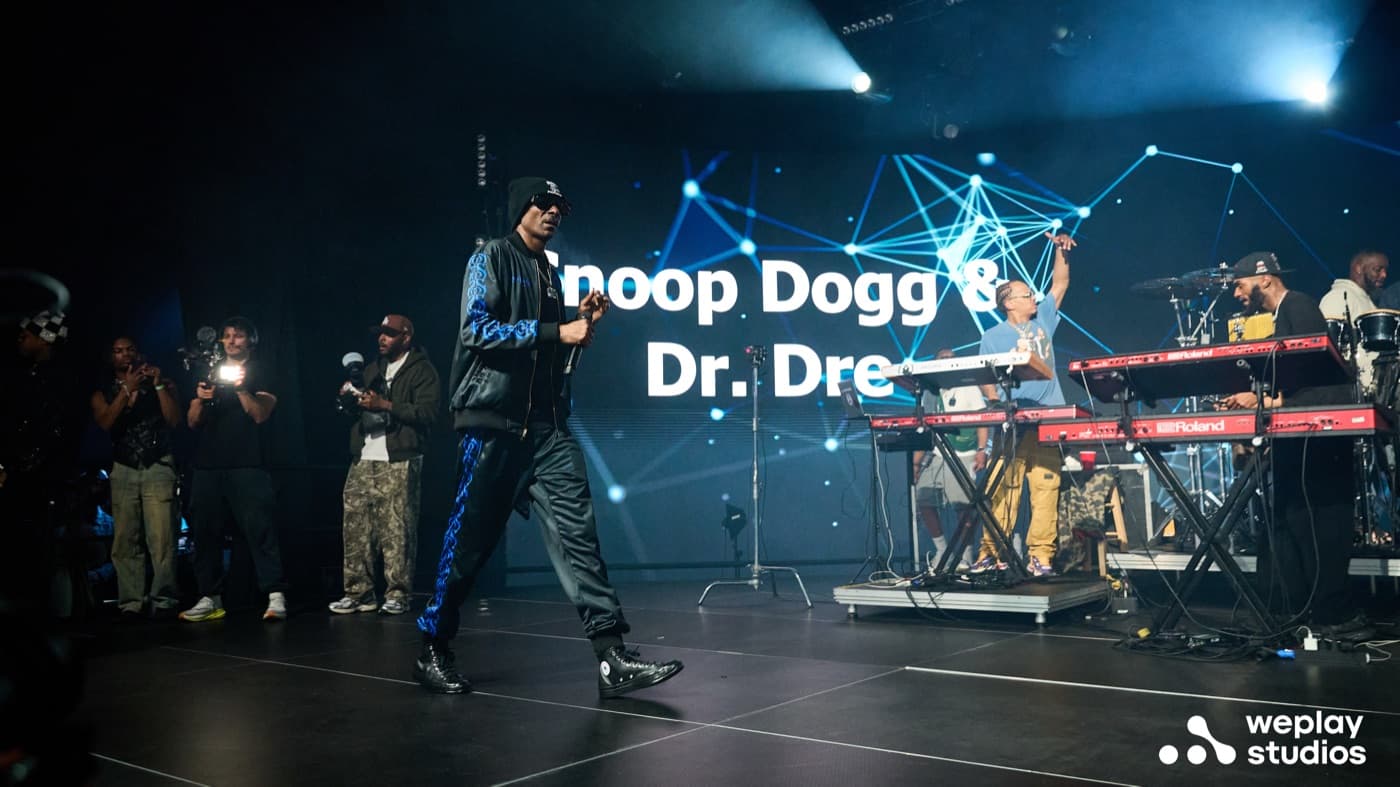

Stage A — LED Volume
Flagship Production Stage
The centerpiece of WePlay Studios. Stage A is a massive LED volume built for concerts, live broadcasts, virtual production, XR experiences, and large-scale events. The 70-foot curved LED wall wraps the stage in 11,520 × 2,520 pixels of Pantone-validated color at P1.8mm pitch — one of the largest permanent LED volumes on the West Coast. Combined with L-Acoustics concert PA, Disguise media servers, and a full Unreal Engine pipeline, Stage A transforms from a 3,000-person dance floor to an intimate 600-seat theater in hours.
LED Wall
70ft × 15ft
Resolution
11,520 × 2,520px
Pixel Pitch
P1.8mm
Max Capacity
3,000
Key Features & Equipment
25,000+ sq ft- 70ft × 15ft P1.8mm LED wall (11,520 × 2,520px)
- Pantone-validated color accuracy at 60/120/240Hz
- L-Acoustics concert PA with KS28 subs
- Full VP/ICVFX/XR pipeline with Disguise servers
- Unreal Engine real-time rendering
- stYpe RedSPY camera tracking (×4)
- Modular audience risers & dance floor config
Dimensions
Main hall + modular audience stand
Capacity
600 seated / 1,500 standing / 3,000 dance floor
See it in action

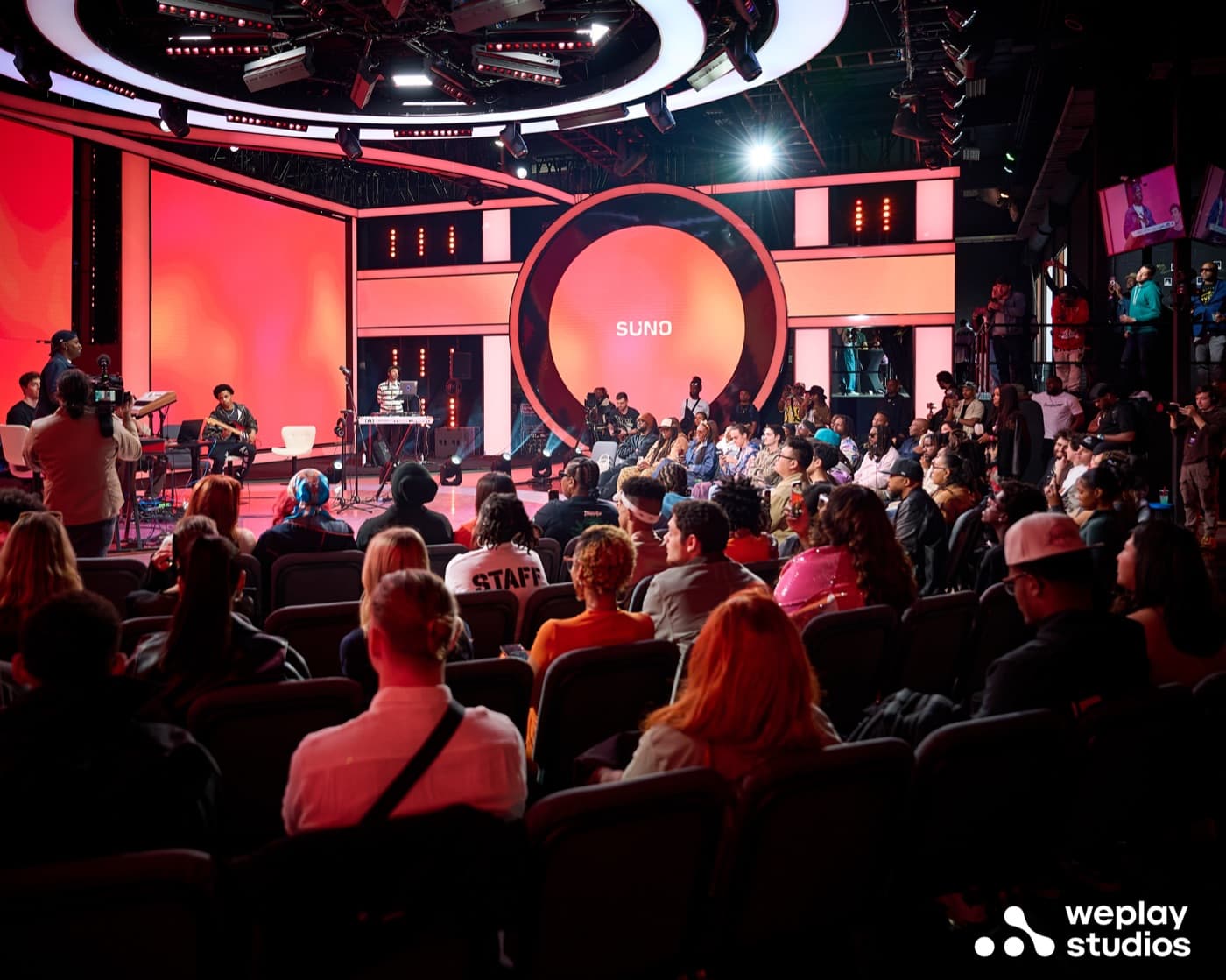

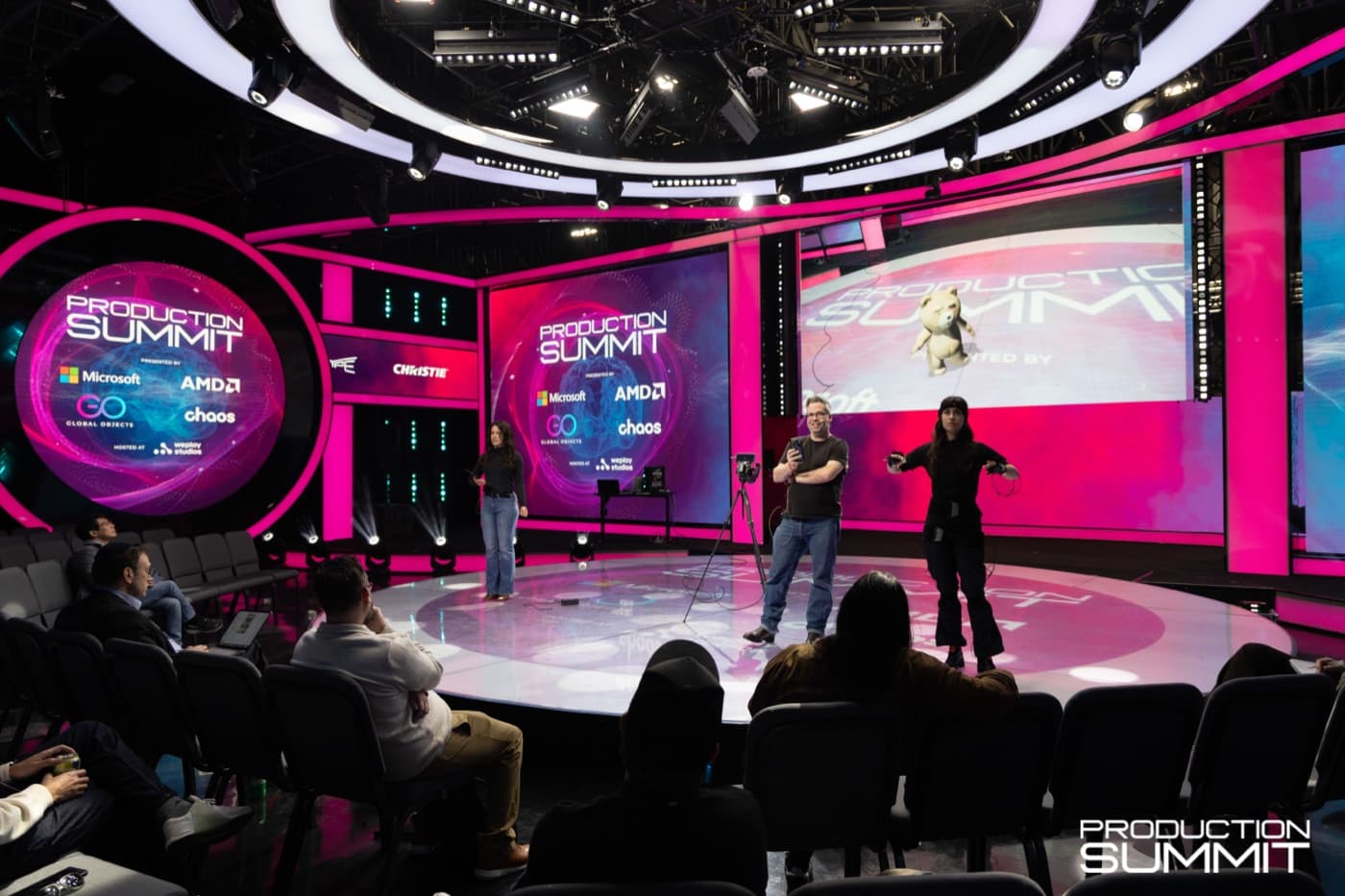

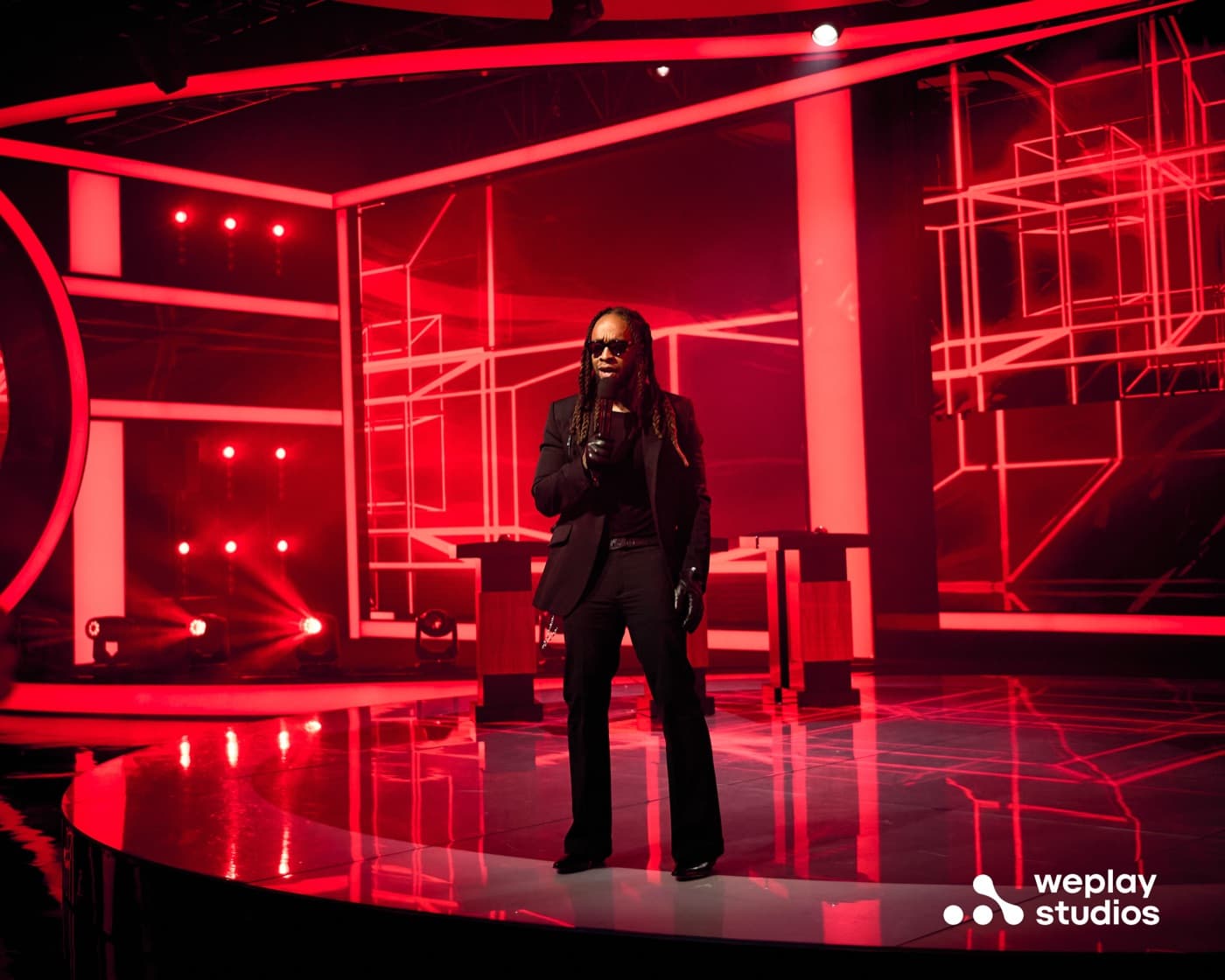

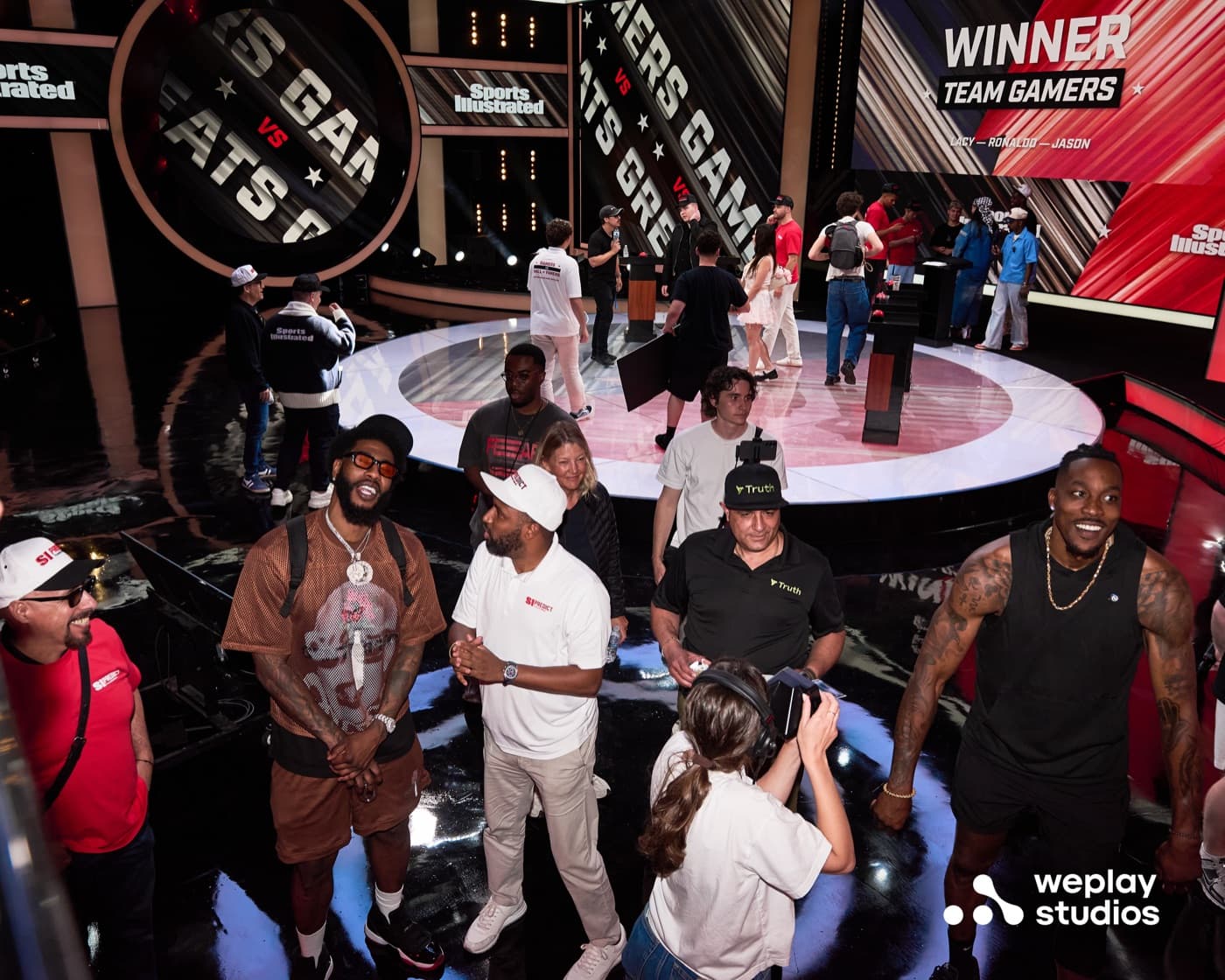

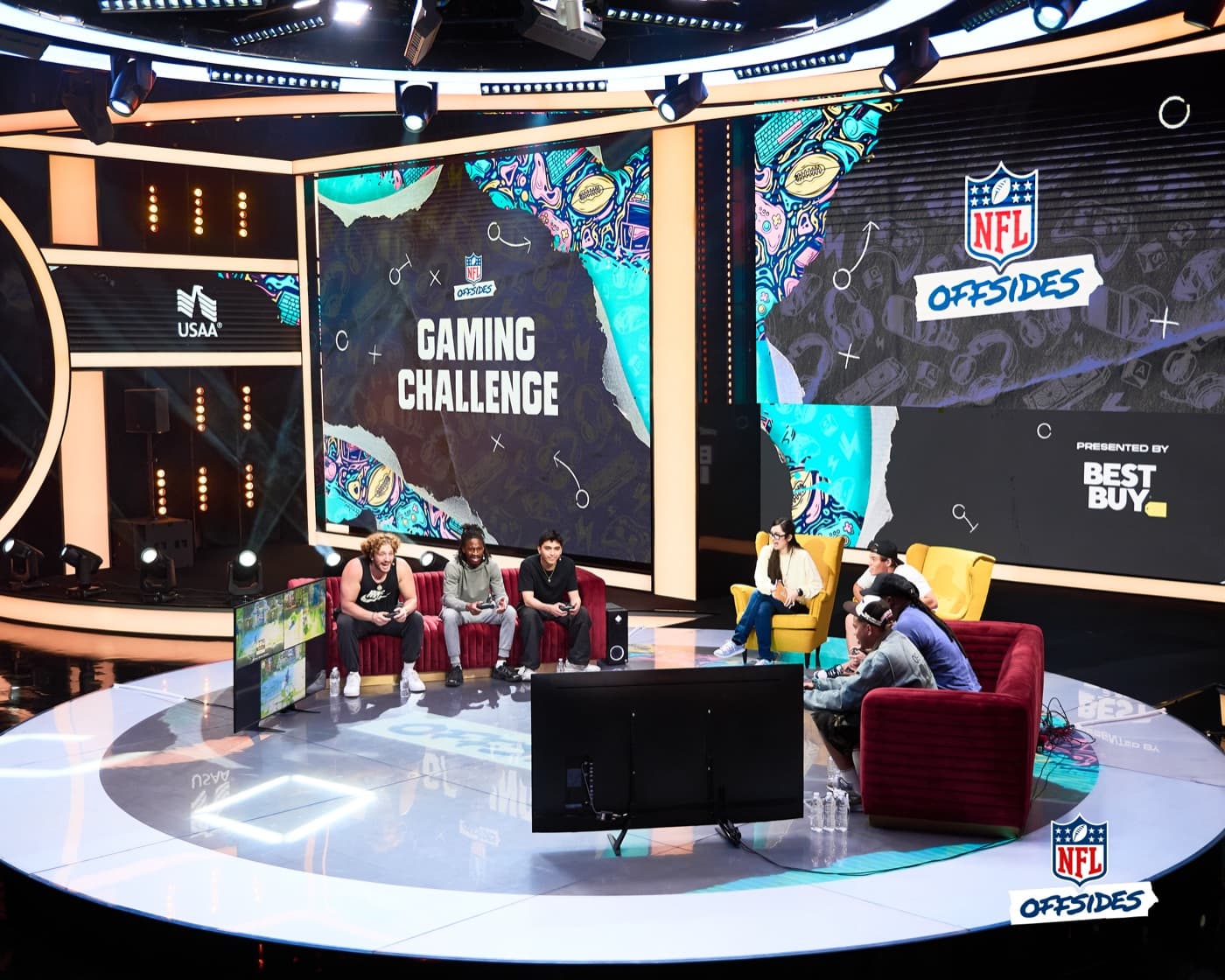

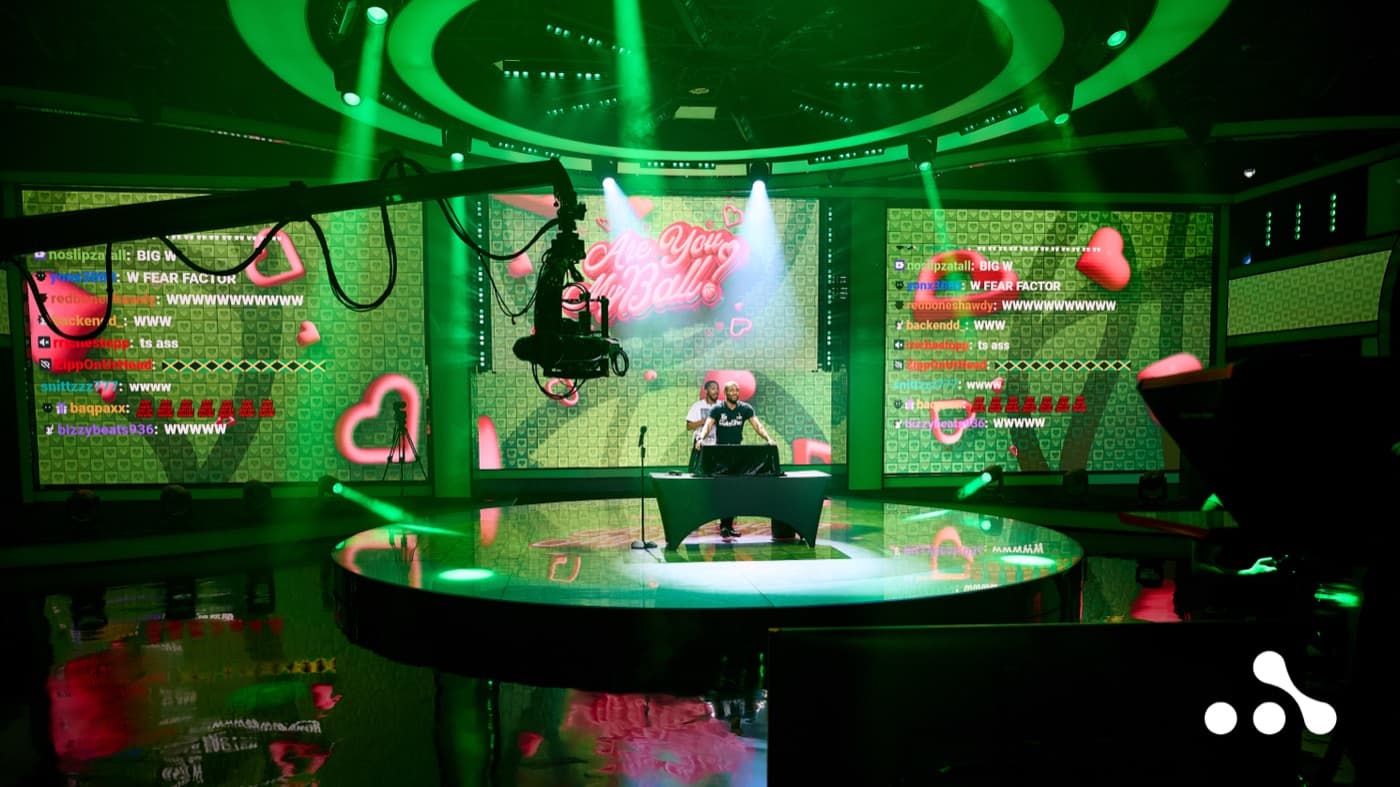

Stage B — Esports Arena
Broadcast & Entertainment Stage
An 8,000 sq ft broadcast-ready arena designed for esports tournaments, live shows, talk shows, and branded entertainment. Stage B features a circular performance platform surrounded by wrap-around LED screens, a 250-seat audience section, and a dedicated bar/lounge area. The space has hosted NFL Offsides, Sports Illustrated Gamers, and major live-streamed events. With its own PA system, multi-camera setup, and direct tie-in to the main control room, Stage B operates independently or in tandem with Stage A for dual-stage productions.
Stage Area
8,000 sq ft
Seating
250 seats
LED Screens
Wrap-around
Control
Independent
Key Features & Equipment
8,000 sq ft- Performance stage with LED backdrop
- Wrap-around P3.9 LED screens
- L-Acoustics PA system with monitors
- Tournament-ready gaming infrastructure
- Multi-camera broadcast setup
- 250-seat audience section
- Adjacent bar/lounge area
- Independent or tandem operation with Stage A
Dimensions
8,000 sq ft broadcast studio
Capacity
250 seated / dance floor configuration
Stage C — Podcast Room
Interview & Podcast Studio
A purpose-built podcast and interview studio on the second floor, fully soundproofed and acoustically treated. Stage C comes equipped with a multi-camera setup, premium set design, broadcast lighting, and dedicated audio control via Allen & Heath console. The intimate setting is perfect for long-form interviews, branded content series, and multi-host podcast productions — all with direct feed to the control room for live streaming or recording.
Studio Size
26'11" × 21'4"
On-Set
Up to 4
Audio
Soundproofed
Feed
Live-ready
Key Features & Equipment
575 sq ft- Multi-camera interview setup (PTZ + studio cams)
- Premium set design with customizable backdrop
- Broadcast-ready lighting (ARRI SkyPanels)
- Dedicated audio control room
- Full soundproofing & acoustic treatment
- Direct control room feed for live streaming
Dimensions
Studio 2 — 26'11" × 21'4"
Capacity
Intimate studio setting (up to 8 on-set)
Stage D — Sports Studio
Sports & News Broadcast Studio
The largest of the second-floor studios, Stage D is configured for sports analysis shows, newscasts, and panel discussions. Featuring a curved LED backdrop, analyst desk setup, and multi-camera switching, this studio has powered live sports coverage and branded sports entertainment. The 39-foot-wide space accommodates full panel setups with up to 6 on-screen talent and a live audience section.
Width
39'8"
On-Screen
Up to 6
LED
Curved backdrop
Format
Sports/News
Key Features & Equipment
900 sq ft- Sports analysis desk setup (up to 6 talent)
- Curved LED panel displays
- Newscast & panel show configurations
- Live coverage & real-time graphics
- Multi-camera switching with PTZ cams
- Direct tie-in to main control room
Dimensions
Studio 1 — 39'8" wide
Capacity
Broadcast studio + small audience
Equipment
Full Tech Specs
Broadcast-grade infrastructure. Everything listed below is available in-house — no third-party rentals needed.

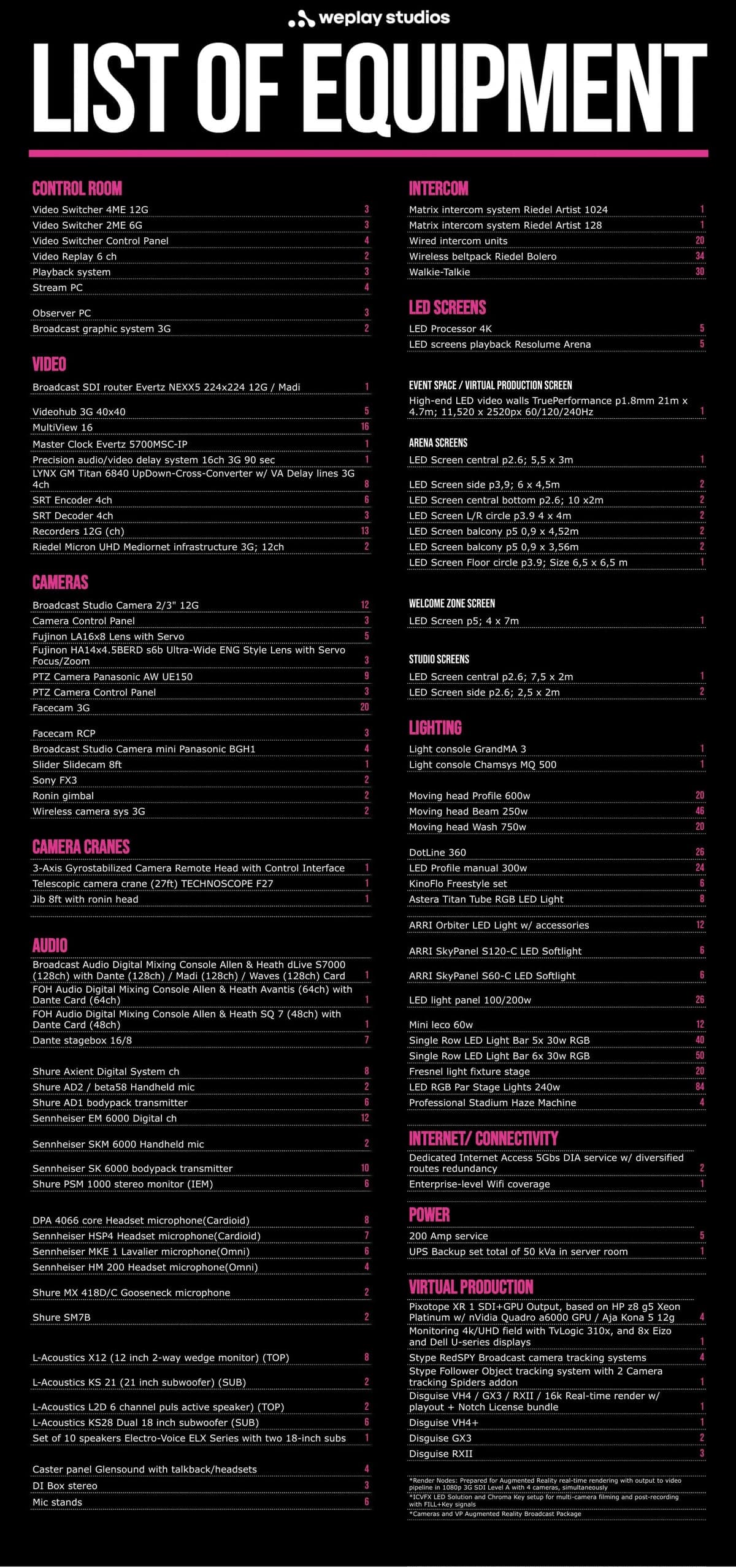

Equipment List — Full Inventory
All equipment included with venue. Custom requests available.
Control Room
- Video Switcher 4ME 12G (×3)
- Video Switcher 2ME 6G (×3)
- Video Replay 6ch (×2)
- Broadcast SDI Router Evertz NEXX5 224×224 12G
- Videohub 3G 40×40
- Master Clock Evertz 5700MSC-IP
- SRT Encoder/Decoder 4ch each
- Riedel Micron UHD Mediornet 3G 12ch
Cameras
- Broadcast Studio Camera 2/3" 12G (×8)
- Fujinon LA16×8 Lens with Servo (×6)
- Fujinon HA14×4.5 Ultra-Wide ENG Lens (×3)
- PTZ Camera Panasonic AW UE150 (×13)
- Facecam 3G (×2)
- Broadcast Studio Camera Panasonic BGH1
- Sony FX3 + Ronin Gimbal
- Wireless Camera System 3G
Camera Cranes
- 3-Axis Gyrostabilized Remote Head with Control Interface
- Telescopic Camera Crane 27ft TECHNOSCOPE F27
- Jib 8ft with Ronin Head
- Slider Slidecam 8ft
Audio
- Allen & Heath dLive S7000 128ch Broadcast Console
- Allen & Heath Avantis 64ch FOH Console
- Allen & Heath SQ7 48ch FOH Console
- Shure Axient Digital Wireless System
- Sennheiser EM 6000 Digital Wireless
- DPA 4066 / Sennheiser HSP4 Headsets
- Shure SM7B / MX 418D/C Microphones
- Dante Stagebox 16/8
PA & Monitoring
- L-Acoustics X12 Wedge Monitors (×8)
- L-Acoustics KS21 Subwoofer (×2)
- L-Acoustics KS28 Dual 18" Sub
- L-Acoustics L2D Active Speakers
- Electro-Voice ELX Series Set with 18" Subs
- Shure PSM 1000 IEM System
LED Screens
- Main LED Wall: TruePerformance P1.8mm — 70ft × 15ft (11,520 × 2,520px) 60/120/240Hz
- Side Screens P3.9: 6 × 4.5m (×2)
- Central Bottom P2.6: 10 × 2m
- L/R Circle P3.9: 4 × 4m (×2)
- Floor Circle P3.9: 6.5 × 6.5m
- Arena Screens + Balcony Screens (×8)
- Studio Screens P2.6 — Central 7.5 × 2m + Sides (×4)
- Welcome Zone Screen P5: 4 × 7m
Lighting
- GrandMA 3 Light Console
- Chamsys MQ 500 Console
- Moving Head Profile 600w (×20)
- Moving Head Beam 250w (×34)
- Moving Head Wash 750w (×30)
- ARRI SkyPanel S120-C / S60-C (×12)
- ARRI Orbiter LED Light w/ Accessories
- Astera Titan Tube RGB LED (×26)
- KinoFlo Freestyle Set
Virtual Production
- Pixotope XR System — HP Z8 G5 Xeon + NVIDIA A6000
- Disguise VH4 / GX3 / RXII — 16K Real-Time Render
- stYpe RedSPY Broadcast Camera Tracking (×4)
- stYpe Follower Object Tracking + 2-Camera Spiders
- TvLogic 310x 4K/UHD Reference Monitors
- Notch License Bundle
- Augmented Reality Broadcast Package
Streaming & Connectivity
- 5Gbps Dedicated Internet (diversified routes, redundancy)
- Enterprise-level WiFi Coverage
- LED Screens Playback — Resolume Arena
- Broadcast Graphics System 3G
Intercom
- Riedel Artist 1024 Matrix Intercom
- Riedel Artist 128 (×3)
- Wireless Beltpack Riedel Bolero (×20)
- Wired Intercom Units (×30)
- Walkie-Talkies (×20)
- Caster Panel Glensound w/ Talkback
Power
- 200 Amp Service (×2)
- UPS Backup — Total 50kVA in Server Room
